Fusion Wall: The Engineered Backstop Wall Padding System
The Fusion Wall is Unlimited Sports Solutions' proprietary backstop and outfield wall padding system. It combines a 3/4" weather-treated sheathing backer, 3" high-impact foam, and an 18 oz. all-weather vinyl shell, secured to the wall with a tool-free UNISTRUT-and-Zeus-Clip trac system instead of face-screwed straps. It's built to withstand extreme outdoor weather, take repeated ball impact, and carry custom team branding or sponsor graphics on the padding and rear windscreen.
Why Wall Padding Matters
An outfield wall, backstop, or dugout fence doesn't feel dangerous, until a player is going full speed chasing a fly ball and doesn't have time to pick up where the fence line is. Collisions with hard-surface walls, poles, and backstops are one of the more preventable injury risks on a ball field, which is why padding has shifted from a "nice to have" upgrade to something governing bodies are actively writing into the rulebook.
The Fusion Wall exists to close that gap without turning your facility into a construction project every time you need to replace a worn-out panel. The foam core absorbs impact, the vinyl shell shrugs off weather and repeated ball contact, and the trac attachment system means a damaged section can be swapped out in minutes instead of scheduling a crew to re-drill the wall.
What Makes Fusion Wall Different From Standard Wall Padding
Most backstop and outfield wall padding is strapped or screwed directly to the wall face. Fusion Wall uses a channel-and-clip attachment system. A UNISTRUT rail is mounted to the wall, with padding hung and locked in via Zeus Clips. This means the panels install faster, sit flush, and can be removed or swapped without re-drilling the wall.
| Standard Strap-On Padding | Fusion Wall System | |
|---|---|---|
| Attachment | Face-screwed or strapped | Tool-free UNISTRUT trac + Zeus Clip |
| Install speed | Slower, panel-by-panel fastening | Faster, panels hang on rail |
| Panel removal/replacement | Requires re-drilling/re-fastening | Lifts off rail, no new holes |
| Branding | Limited | Custom graphics on padding and rear windscreen |
| Hardware exposure | Often visible | Concealed by rear Privascreen windscreen |
Where the Fusion Wall Fits

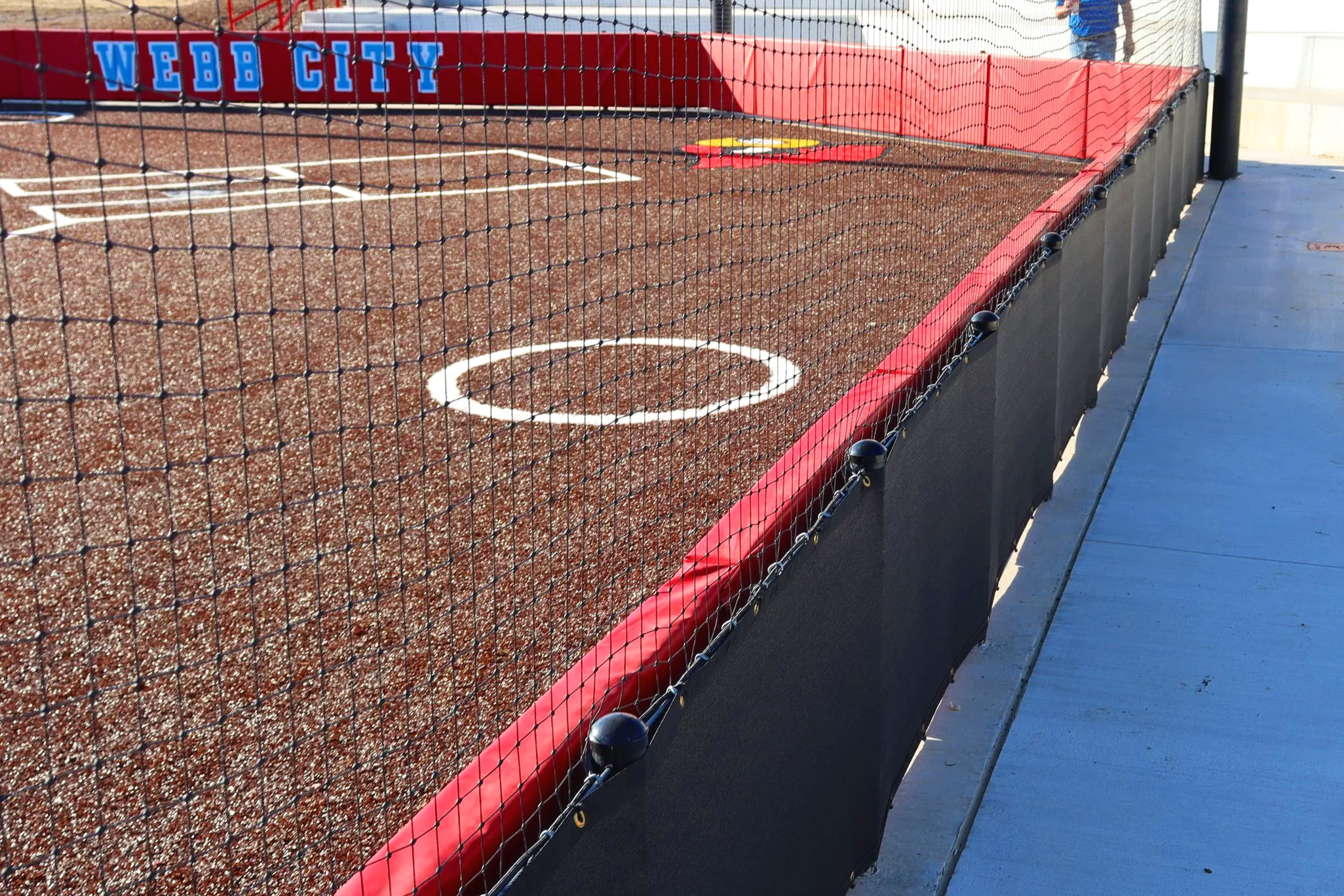

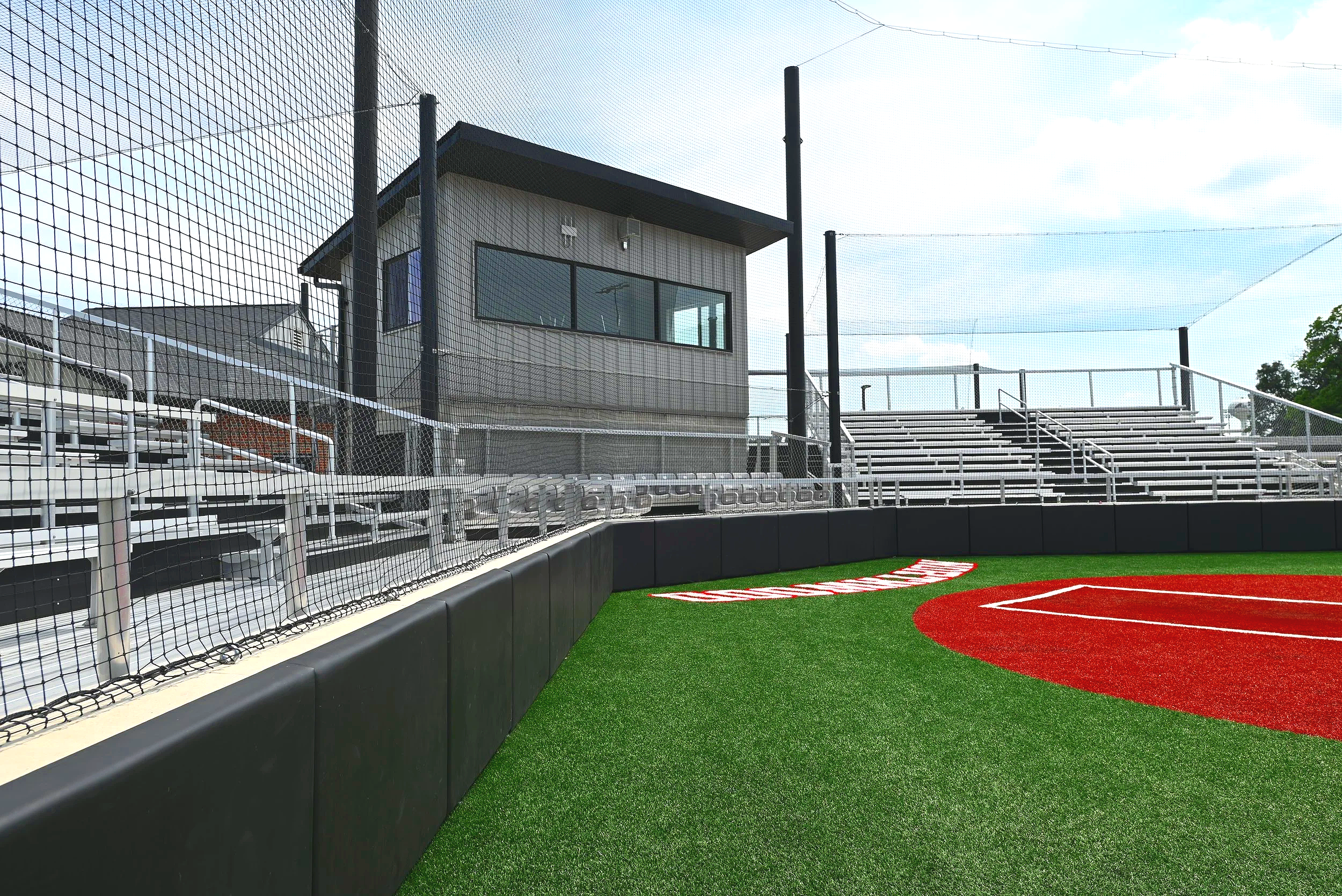

The fusion wall fits any facility with a hard-surface wall, fence, or backstop that a player could run or slide into. Common installs include outfield home-run fences, backstops behind the plate, dugout walls, and bullpen fencing. College and high school programs find installing the fusion wall useful to bring a venue up to current safety standards. Older facilities can give their backstop new life by installing a new fusion wall.
The best part, our fusion wall ships in configurable run lengths and mounts to a rail rather than the wall face itself. That means it works for a full outfield fence line or just the highest-traffic sections, like behind home plate, down the lines, or around dugout entrances. No custom fabrication needed for every job.
Fusion Wall Construction | Specs & Materials
Core Panel Build (Side View, Layer by Layer)
| Layer | Material | Spec |
|---|---|---|
| Backer | 3/4" AWPA-compliant severe weather treated sheathing (or 23/32" OSB, A-grade) | Primed & painted, extreme-conditions exterior paint |
| Cushion | 3" high-impact foam | Density 1.50 ± 0.1 pcf |
| Shell | Advantage MVP 18.5 oz/sq yd vinyl | 3,000+ hour UV resistance |
Foam Core Performance Data
| Property | Spec |
|---|---|
| Density | 1.5 ± 0.1 lbs PCF |
| Indentation Force Deflection (25%) | 75 ± 6 lbs |
| Indentation Force Deflection (65%) | 135 ± 6 lbs |
| Resilience (% rebound) | 48% ± 1 |
| Tensile strength | 15 psi |
| Tear strength | 2 lbs/inch |
| Static fatigue (% loss @ 25% IFD) | 25% |
| Static fatigue (% loss in thickness) | 2% |
| Antimicrobial treatment | Yes — mitigates fungal growth |
Vinyl Shell Performance Data (Advantage MVP)
| Property | Spec |
|---|---|
| Weight | 18.5 oz/yd² |
| Construction | 18 x 17 threads/inch, 1000 x 1300 denier |
| Grab tensile strength | 157 x 185 lbs/1" |
| Tongue tear strength | 132 x 91 lbs |
| Adhesion | 26 lbs/2" |
| Finish | Matte emboss |
| Cold crack rating | -30°F |
| UV resistance | 3,000+ hours, UV & BACshield treated |
| Fire rating | Self-extinguishing, passes flammability (FR) |
| Color options | 18 standard colors + custom graphics |
Attachment Hardware
| Component | Spec |
|---|---|
| Zeus Clip | 1" galvanized screws to backer; overlaps UNISTRUT between posts |
| UNISTRUT rail | 1-5/8" x 13/16" slotted standard; 2 per pad |
| Pipe strap | 2-hole, galvanized bolt & nut, attached to UNISTRUT |
| Posts | 2.5" O.D., set approximately 4' on-center |
Standard Dimensions
| Configuration | Height x Length | Notes |
|---|---|---|
| Standard run | 2.5' T x 110 LF | ¾" treated sheathing, 3" foam, 18 oz vinyl, color TBD |
| Extended run | 2.5' T x 135 LF | Same build; custom lengths available on request |
Built to Last: Installation & Lifespan
Because our fusion wall hangs on a UNISTRUT rail instead of being face-screwed panel by panel, a typical run goes up faster than strap-on padding. It also doesn't leave a wall full of fastener holes if a section ever needs to come down. Just slide the new padding right in. Posts are set on a consistent 4-foot spacing, so the system holds its line whether you're padding a short run behind home plate or a full outfield fence.
Day to day, the fusion wall is built to take the weather and keep taking it. The vinyl shell is rated for 3,000+ hours of UV exposure and stays flexible down to -30°F, so it won't crack or fade out from a full season of sun, rain, and temperature swings. The foam core's antimicrobial treatment keeps mildew and fungal growth from setting in over years of outdoor use, and because panels lift off the rail individually, a section that eventually does take too much damage can be replaced without touching the rest of the wall.

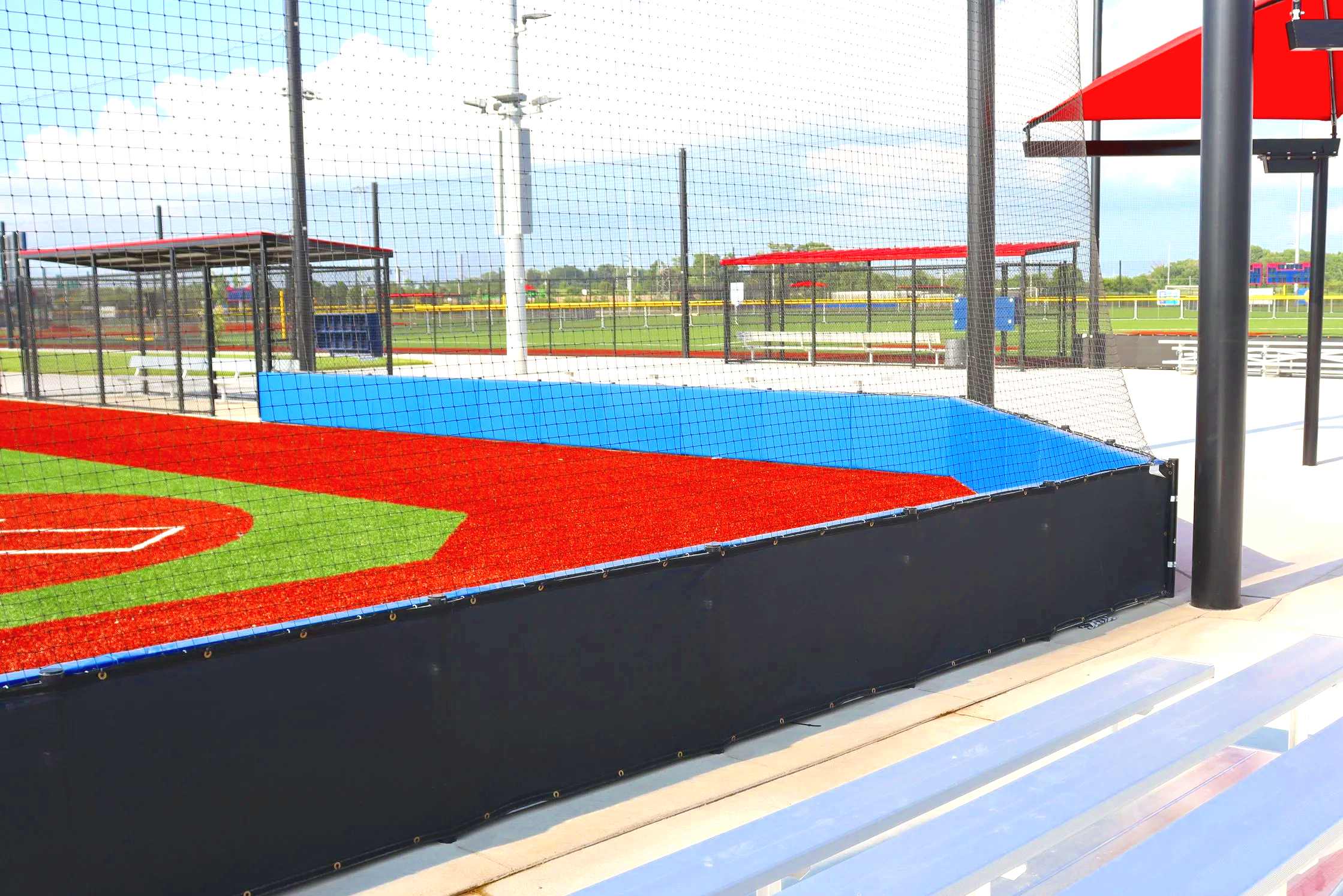

Rear Windscreen (Ultra90) - Conceals Hardware while adding privacy
Fusion Wall's rear side can be finished with a Privascreen/Ultra90 windscreen that hangs from the back of the system to conceal hardware and net/cable attachments.
| Property | Spec |
|---|---|
| Material | High-density knitted polyethylene |
| Standard heights | 3'8" (4' chain link) · 5'8" (6' chain link) · 7'8" (8' chain link) |
| Density | 90% |
| Weight | 5 oz/sq-yd (ASTM D3776) |
| Tear strength | Warp 51 lbs / Fill 52 lbs (ASTM-D5587) |
| Breaking strength | Warp 107 lbs / Fill 125 lbs (ASTM-D5034) |
| Bursting strength | 202 psi (ASTM-D3786) |
| Hems | 3-ply reinforced, polypropylene binding |
| Grommets | #2 brass, every 12" (every 24" on heights over 8'), triple-grommeted corners |
| Warranty | 4-year limited |
| Finishing options | 150' rolls (ready-to-install) · 150' Plus rolls (hemmed, cut on-site) · Custom (cut to spec) |
Color Options
Fusion Wall padding is available in 18 standard vinyl colors:
Black
White
Charcoal Grey, Grey, Steel Grey, Light Grey
Navy, True Blue, Regal Blue, Royal Blue, Carolina Blue, Marine Blue
Forest Green, Green, Lime Green
Purple, Bright Pink
Maroon, Burgundy
Scarlet Red, Cardinal Red, Red
Brown, Tan,
Orange, Tangerine
Yellow
Use the Fusion Wall builder to the right to begin envisioning your future fusion wall!
Click a color to picture your windscreen + padding color combination!
Padding color
Windscreen color
NCAA Padding Requirements: What's Actually Mandatory
NCAA Rule 2.15 sets a hard deadline of January 1, 2027, for softball: any sideline or home-run fence built from a hard material (i.e. wood, concrete, or brick) at a facility hosting NCAA softball competition.
The padding has to start no higher than 1 foot off the ground and run to the top of the structure or 6 feet up, whichever is shorter. Backstop padding on those same hard materials is already required under Rule 2.3.4, so the 2027 deadline mainly extends an existing standard to the rest of the fence line. The NAIA has adopted the same requirement on the same timeline.
Baseball doesn't have a hard mandate yet. The NCAA Baseball Rules Committee recommends padding on all hard surfaces — backstops, sideline fences, and outfield fences — anywhere a player could realistically collide during play. It's currently written into the rules as a recommendation, not a requirement. Given that the same shift already happened in softball, facilities running both programs are increasingly padding baseball venues to the same standard now rather than waiting for it to become mandatory.
Branding & Custom Grpahics
Our fusion wall padding and its rear windscreen can both carry custom graphics. This can include team logos, sponsor branding, or field signage. We use HDI bonded or UV-coated digital print to customize it to your facilities needs. This turns the wall into a revenue/sponsorship surface as well as a safety feature.
Frequently Asked Questions
-
A backstop wall padding system is a protective, impact-absorbing panel system installed along a baseball or softball backstop, outfield wall, or dugout wall to protect players from collisions with hard surfaces. Fusion Wall is USS's version, built with a foam core, vinyl shell, and mechanical trac attachment rather than adhesive or strap-only mounting.
-
Fusion Wall uses a UNISTRUT rail mounted to the backer, with padding panels secured by Zeus Clips and 2-hole pipe straps. This is a tool-minimal, rail-based system rather than face-screwing each panel directly to the wall.
-
Standard configurations are 2.5' tall by 110 linear feet or 135 linear feet, with posts set approximately 4' on-center. Custom lengths and heights are available for specific facility layouts.
-
Yes. The foam core carries an antimicrobial treatment to resist fungal growth, and the vinyl shell is rated for 3,000+ hours of UV exposure with a cold-crack rating of -30°F, so it's built for year-round outdoor exposure.
-
Yes. Both the padding face and the rear windscreen can be custom-printed with logos, colors, or sponsor branding using HDI bonded or UV-coated digital print (additional charge applies).
-
-
Yes. Fusion Wall includes a rear Ultra90/Privascreen windscreen that hangs from the back of the system to conceal hardware and cable attachments as part of the standard build.
